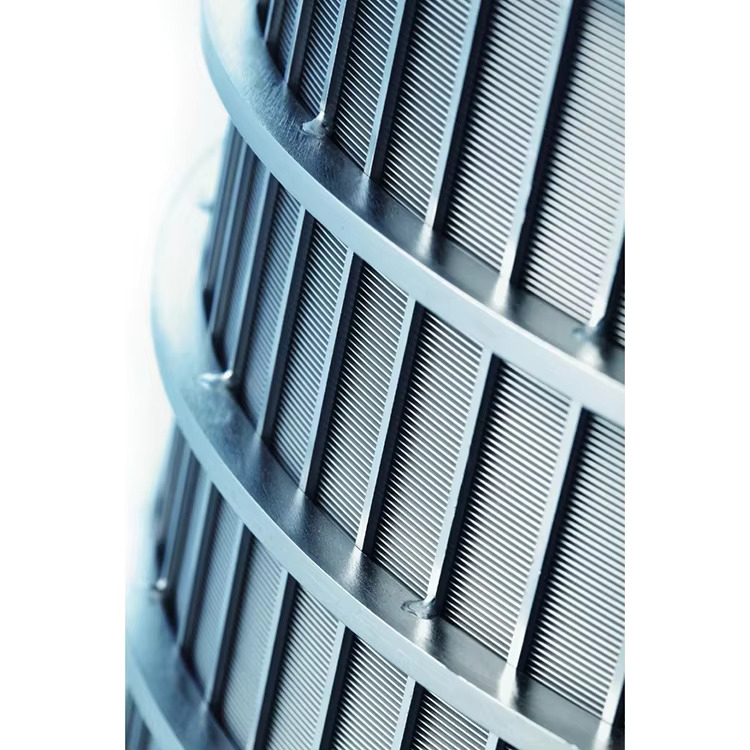

Each intersection of these wires is fusion welded. The surface treatment process makes the surface clean and smooth, and the pressed screen plate can be used in papermaking, chemical, environmental protection, food, wine, decoration and other industries.
Material: Stainless steel 304,316, 316L
Slot size (opening): 0.01-5mm or customer requirements
Support rod spacing: 1.5-3cm or customer requirements
Wedge wire size: 1.5*2mm, 2*3mm or others
Support rod size: 2*3mm, 3*4mm or others
Important properties
Application: Filter
Type:stainless steel Metal MeshFilter Cylinder, Pipe, screen
Material: 304,316 stainless steel wedge wire screen
Filter hole shape: square
Other properties
Video factory inspection: available
Mechanical test report: available
Brand: Guanxuan
Filtration rate: 90-94%
Thickness: customized 1-15mm
Length: customized
Width: customized
slot:100micron, 200 micron, 500micron etc
Profile wire size:1.5x2mm, 2x3mm etc
Support rod size:2x3, 3x4mm etc
Surface treatment polished
Application Industry Filter Sieve
Packaging and delivery information
Packaging Details:plywood box
Port: Qingdao, Shanghai, Tianjin
Sales unit: Single product
